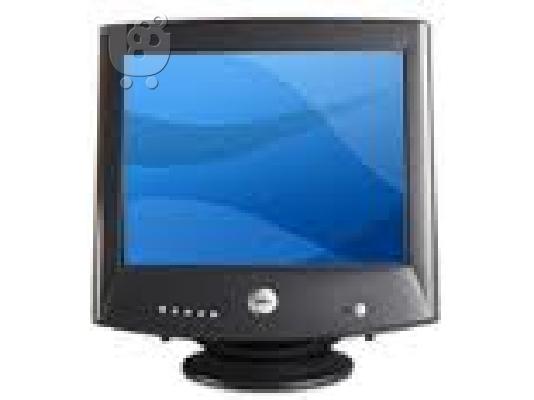

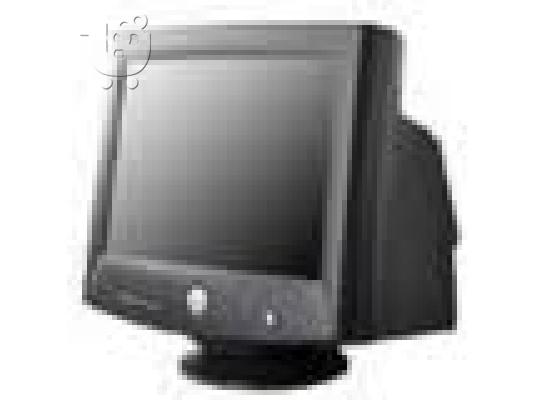

Dell™ M782p Color Monitor

Ευκαιρία !!! Πωλείτε ελαφρός μεταχειρισμένη σε άριστη λειτουργία και κατάσταση !!! Back to Contents Page Specifications : Dell™ M782p Color Monitor User's Guide General • CRT • Resolution • Preset Display Modes • Electrical • Physical Characteristics • Environmental • Power Management Modes • Pin Assignments • Plug & Play ________________________________________ General Model number : M782p ________________________________________ CRT Screen dimensions Preset Display area: Diagonal Horizontal Vertical 382.8 mm (15.07 inches) 306±4 mm (12.05±0.02 inches) 230±4 mm (9.06±0.02 inches) Viewable Image Size (VIS) Diagonal Horizontal Vertical 406.4mm (16.0 inches) 325.1 mm (12.8 inches) 243.9 mm (9.6 inches) Dot pitch 0.25 mm Deflection angle 90° Phosphor type P22, medium short persistence Faceplate coating Anti-glare, anti-static ________________________________________ Resolution Horizontal scan range 30 - 85 kHz (automatic) Vertical scan range 50 - 160 Hz (automatic) Optimal preset resolution 1024 x 768 at 85 Hz Highest preset resolution 1280 x 1024 at 75 Hz Highest addressable resolution* 1600 x 1200 at 65 Hz * Addressable means the monitor will sync up to this mode. However, Dell does not guarantee the image will be sized and centered correctly. Dell guarantees image size and centering for all preset modes listed in the following table. ________________________________________ Preset Display Modes Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal / Vertical) IBM®, VGA2, 720 x 400 31.5 70.1 28.3 -/+ IBM, VGA3, 640 x 480 31.5 59.9 25.2 -/- VESA®, 640 x 480 37.5 75.0 31.5 -/- VESA, 640 x 480 43.3 85.0 36.0 -/- VESA, 800 x 600 46.9 75.0 49.5 +/+ VESA, 800 x 600 53.7 85.1 56.3 +/+ VESA, 1024 x 768 60.0 75.0 78.8 +/+ VESA, 1024 x 768 68.7 85.0 94.5 +/+ VESA, 1280 x 1024 80.0 75.0 135.0 +/+ ________________________________________Electrical Video input signals analog, 0.7 Vpp, positive at 75 ohm Synchronization input signals separate horizontal and vertical; TTL level, positive or negative AC input voltage / frequency 100-240 VAC ± 10% (90 - 264VAC) / 60-50Hz (47-63Hz) AC input current at 120 VAC AC input current at 240 VAC 1.5 A max. 0.75 A max. Inrush current at 120V Inrush current at 240 V 17 A 32 A ________________________________________ Physical Characteristics Connector type 15- pin D-sub Signal cable attached to monitor Dimensions: Height (With Base) Height (Without Base) Width Depth 409 mm (16.1 inches) 373 mm (14.69 inches) 399 mm (15.7 inches) 420 mm (16.53 inches) Weight (monitor only) Weight (with packaging) 16.3 kg (35.86 lbs) 19.6 kg (43.12 lbs)
