Disc Mower PRONAR PDK210

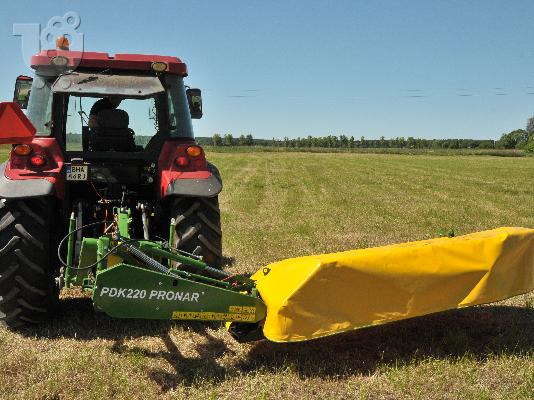

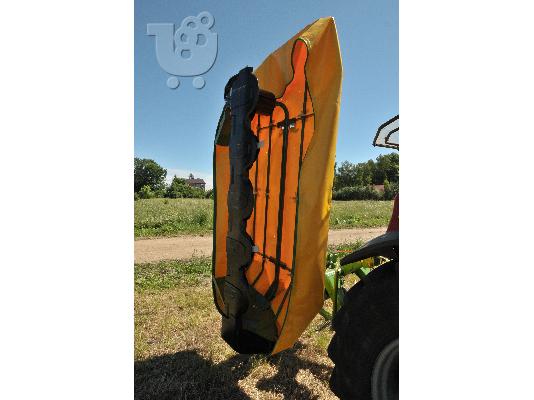

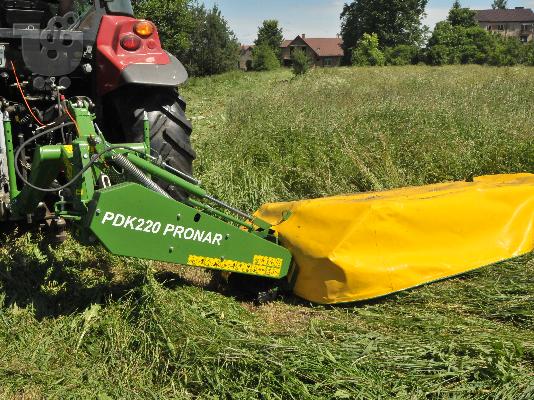

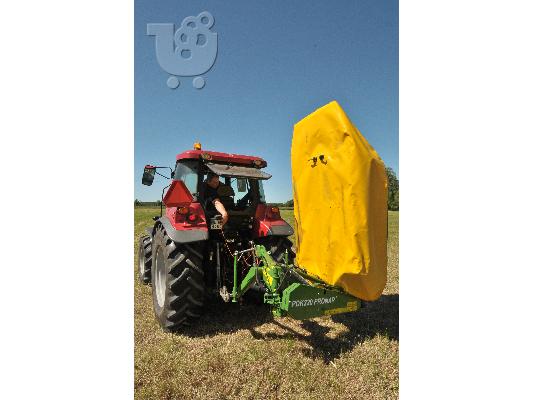

Disc Mower PRONAR PDK210 with classic suspenssion system is compact, strong but at the same time lightweight construction built on COMER cutterbar. Thanks to adjustable hitch pins, mower can work with different agricultural tractor types with 3 points linkage system cat. II and cat. III. Min. Tractor power requirement is 22 kW (30 hp) whitch is 50% less than most drum mowers with similar cutting width of 2,1 m.\r\n\r\nDrive\r\nIn Pronar mowers drivetrian is used high quality cutterbar and transmission of renowned Italian COMER company. Drive from tractor is transmitted by joint - telescopic shaft with one - way clutch on the bavel gear, which is an integral part of the cutterbar - and hence one the first bar\'s disc. Such drivetrain ensure dependable and stable machine operation.\r\n\r\nLifting the mower on the headland and passing by the windrows is delivered through a mower\'s cylinder without lifting it on tractor\'s lift rods.\r\n\r\nTransportation\r\nDisc Mower PRONAR PDK210 has got three transportation positions which is definite asset and distinguishes them from other mowers producers. Mowers can be transported in following positions: vertically on the side of the tractor, vertically from the rear of the tractor, and horizontally from the rear of the tractor. The vertical setting on the side of the tractor runs manually. \r\n\r\n \r\nTECHNICAL DATA \r\n \r\nCutting width [m] 2,10 \r\nSwath width min./ max [m] 1,50 \r\nProductivity [ha/h] 2,1 \r\nNumber of discs 5 \r\nNumber of knives 10 \r\nMin. tractor power [kW/HP] 22/30 \r\nPTO revolutions [RPM] 540 \r\nWeight [kg] 380
