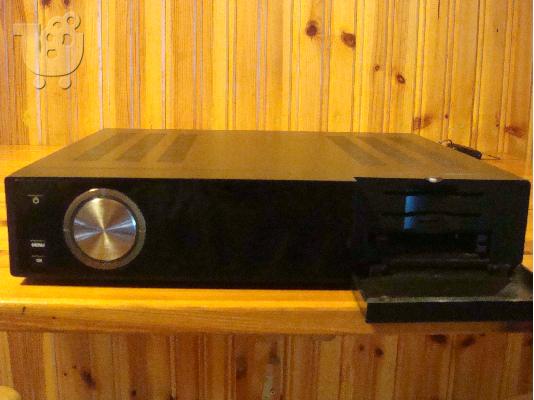

Πωλείται δορυφορικός δέκτης OPTICUM HD TS 9600

Ψηφιακός δέκτης υψηλής ανάλυσης σε συνδιασμό με δέκτη επίγειων ψηφιακών καναλιών (Δείχνει και τα ψηφιακά κανάλια της ΕΡΤ και τα ψηφιακά κανάλια που εκπέμπουν σε κωδικοποίηση MPEG4 και σύντο,α θα λειτουργούν σε όλη την Ελλάδα).Δορυφορικός δέκτης HD με ενσωματομένο επίγειο ψηφιακό δέκτη HD. 2 υποδοχές για κάρτες και 2 για module cam.Ελληνικό μενού και ΕPG.

Two smart card readers (Conax) * Two CI slots for CAM modules * Support for SD / HD (MPEG2 / MPEG4 H.264), DVB-S, DVB-S2, DVB-T * Θύρα Ethernet * Θύρα USB * Timeshifting, * High Definition Video output: HDMI and YPbPr, * Front panel display — VFD, * Channel sorting by Satellite, Alphabetic order & Network FTA, CAS, * EPG: Now, Next events and 7 days schedule, * Subtitle support: OSD & VBI insertion for TV, * Variable Input Symbol Rate (1-45 Msps), * Video output resolution: 576p, 720p, 1080i, * Multi language OSD, * Fast Channel Change, * 8 Favorite List & Unlimited Programs per each, * Channel Edit Function: Move, Delete, Favorite, Lock, Rename, Skip, * Manual PID/ Satellite & TP/ Network Scan, * S/PDIF (Digital Audio or AC3 stream out), * Unicable, DiSEqC 1.0, 1.1, 1.2 and USALS Compatible, * Software Upgrade via RS-232C & USB,

CPU

• Processor: STi7101
• Flash memory: 8 MB
• RAM memory: 192 MB

Satellite tuner / lnb

• Input Connector: F-type, IEC 169-24
• IF Input Frequency: 950MHz to 2150MHz
• IF Loop Throughout
• Input Level: -65 dBm~-25 dBm
• LNB Power: 13 /18VDC / 500mA Max
• DiSEqC Control: Unicable, 1.0, 1.2 & USALS compatible
• Band Switch: 22KHz Tone(22 +/- 4KHz,Amplitude :0.6 +/- 0.2V)
• Modulation method: LDPC/BCH(DVB-S2) 8PSK/QPSK, DVB-S QPSK
• Symbol Rate: LDPC/BCH(DVB-S2) 8PSK/QPSK :10~30Msps
• DVB-S QPSK : 1~45Msps
• Decoding Rate 1/2,2/3,3/4,5/6 and 7/8
• Bandwidth: 36MHz
• LDPC/BCH: Punctured Code ,1/2,2/3,3/4,3/5,4/5,5/6,8/9,9/10 in DVB-S2

Terrestrial Tuner (optional)

• Input Frequency: 174-230, 470-862MHz (VHF i UHF)
• Band: 7 or 8MHz
• Input Level: -75 to -20dBm
• Input Connector: IEC 169-2, Female
• Input Impedance: 75?
• MPEG transport Stream A/V Decoding
• Demultiplex According to ISO/IEC 13818-1(MPEG-2 system)
• Input stream Max. 90Mbit/s
• Aspect Ratio 4:3(default), 16:9 letterbox
• Video Decoding ISO/IEC 13818-2(MPEG2 video) MP@HL,
• ISO/IEC 14496-10 HP@L4
• Video Resolution 576p,720p or 1080i
• Audio Decoding ISO/IEC13818-3(MPEG2 audio/MUSICAM), AC-3
• Audio Mode Single Channel / Dual Channel, Stereo, Joint Stereo

Front PCB

• Display VFD or 7-Segment LED
• Common Interface 1 (optionally 2)
• Smartcard Reader 1 (optionally 2)

Rear panel

• RCA Video, Audio L, Audio R, YPbPr
• SCART TV
• S/PDIF Coaxial, (optional optical)
• HDMI 1.2
• USB, IR Connector for external IR Sensor, RS232, Ethernet

Power supply

• Input Voltage Free Voltage (100~250V AC, 50/60Hz)
• Power Consumption 17 W max. *

Physical specification

• Size[WDH] 280mm x 260mm x 60mm or
• 260mm x 215mm x 50mm
• Net Weight * Operation Temperature 5?~+45?
• Storage Temperature -10?~+70?
• Storage Humidity 5%~95% RH (Non-Condensing) ΕΛΑΦΡΟΣ ΜΕΤΑΧΕΙΡΙΣΜΕΝΟ ΚΑΙ ΜΕ ΕΓΓΥΗΣΗ
